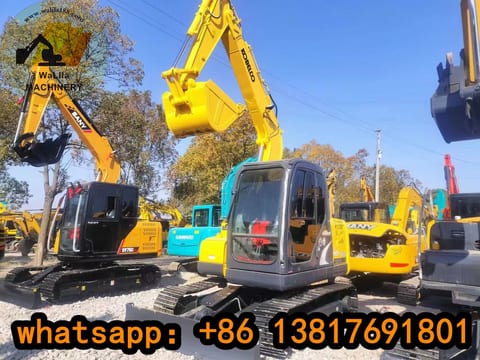

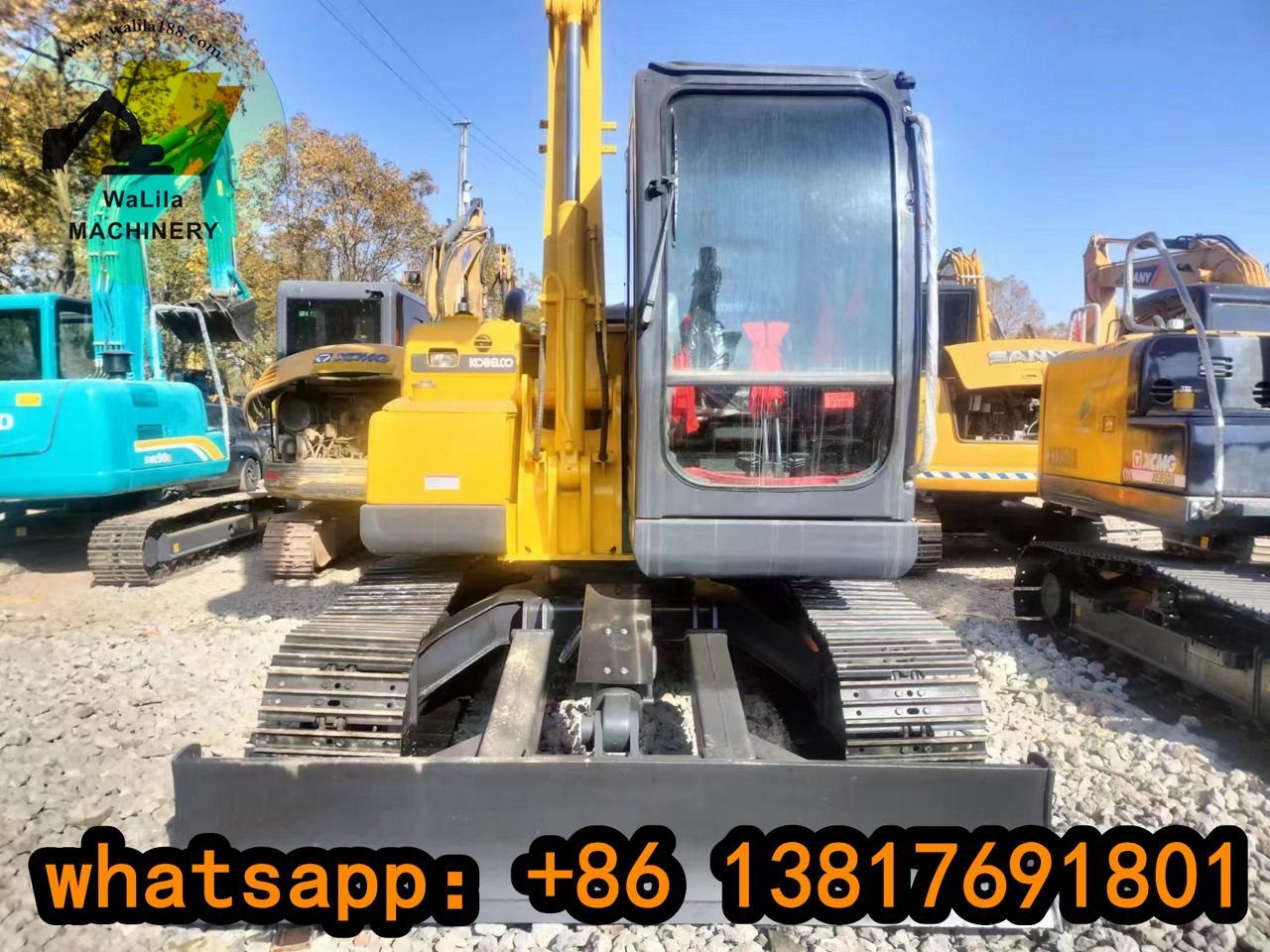

2023 Kobelco SK75 Crawler Excavator

Kobelco SK75 | 6.8 t Crawler Excavator | 800 hours
Location: Shanghai, China

Machine Overview:
2023 Kobelco SK75 crawler excavator with 800 hours. Operating weight 6850 kg, bucket capacity 0.4 m³. Isuzu 4LE2XCUA turbocharged engine (41 kW / 72 hp). Travel speed 5.3/2.8 km/h, swing speed 11.5 rpm, gradeability 70%. Digging forces: bucket 52.7 kN, arm 39.4 kN. Max digging radius 6.46 m, max digging depth 4.48 m, max dumping height 5.33 m. Fuel tank 140 L, hydraulic oil tank 67 L. Transport dimensions: length 6.2 m, width 2.32 m, track width 450 mm. Equipped with bucket, quick coupler, hydraulic hammer. Euro 5 emission class. CE certified.

Key Features:
- 6.8 t weight
- 800 hours
- Isuzu engine, 72 hp
- Bucket capacity 0.4 m³
- Max digging depth 4.48 m
- Quick coupler and hydraulic hammer included
- Euro 5, CE

Technical Data:
Engine: Isuzu 4LE2XCUA, 41 kW (72 hp), diesel, Euro 5
Work Area: Max digging depth 4.48 m, max digging radius 6.46 m, max dumping height 5.33 m, bucket digging force 52.7 kN, arm digging force 39.4 kN
Dimensions: Transport length 6.2 m, width 2.32 m, track width 450 mm

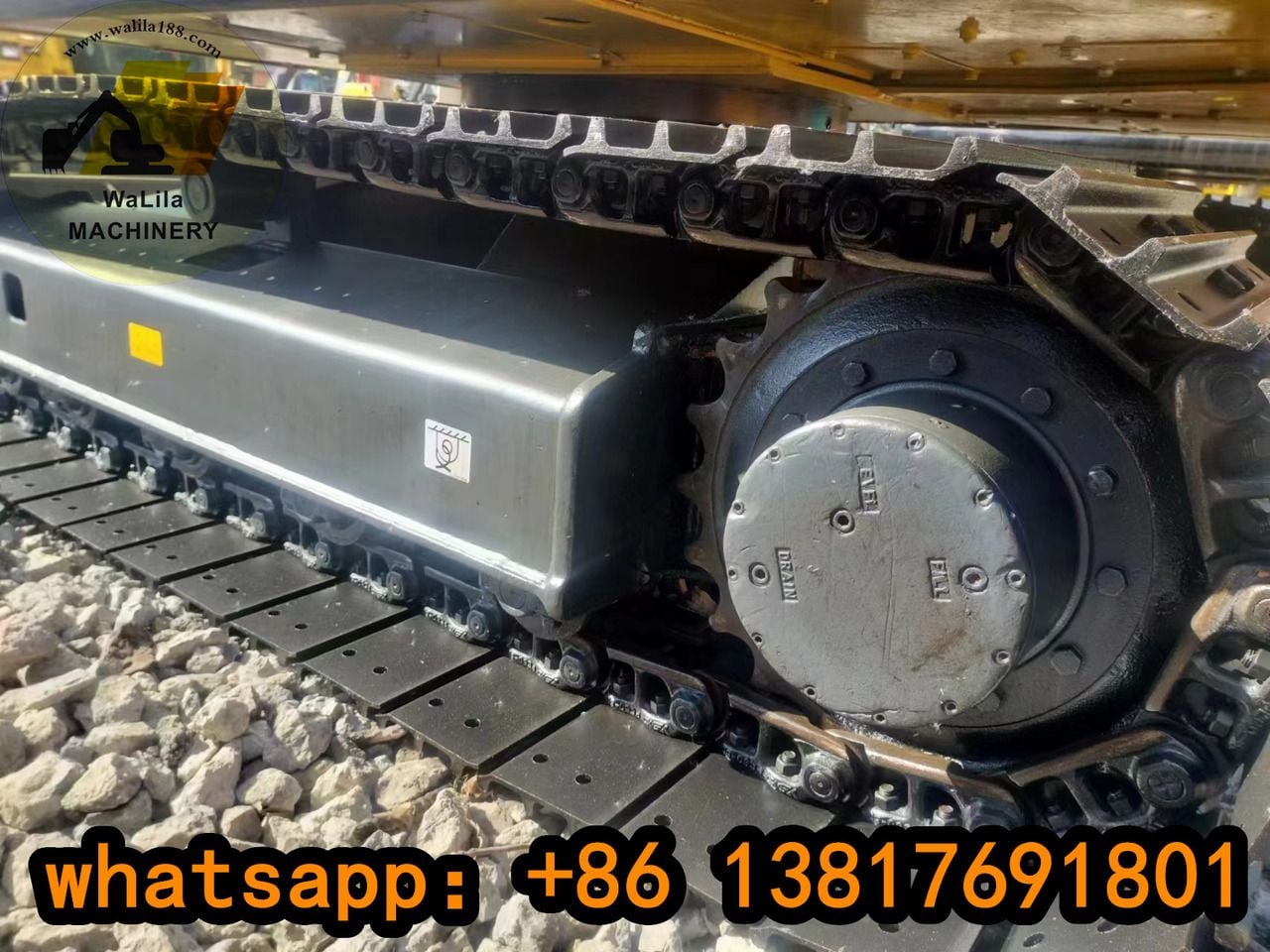

Undercarriage: Track width 450 mm
Attachments: Bucket, quick coupler, hydraulic hammer
Documentation: CE
