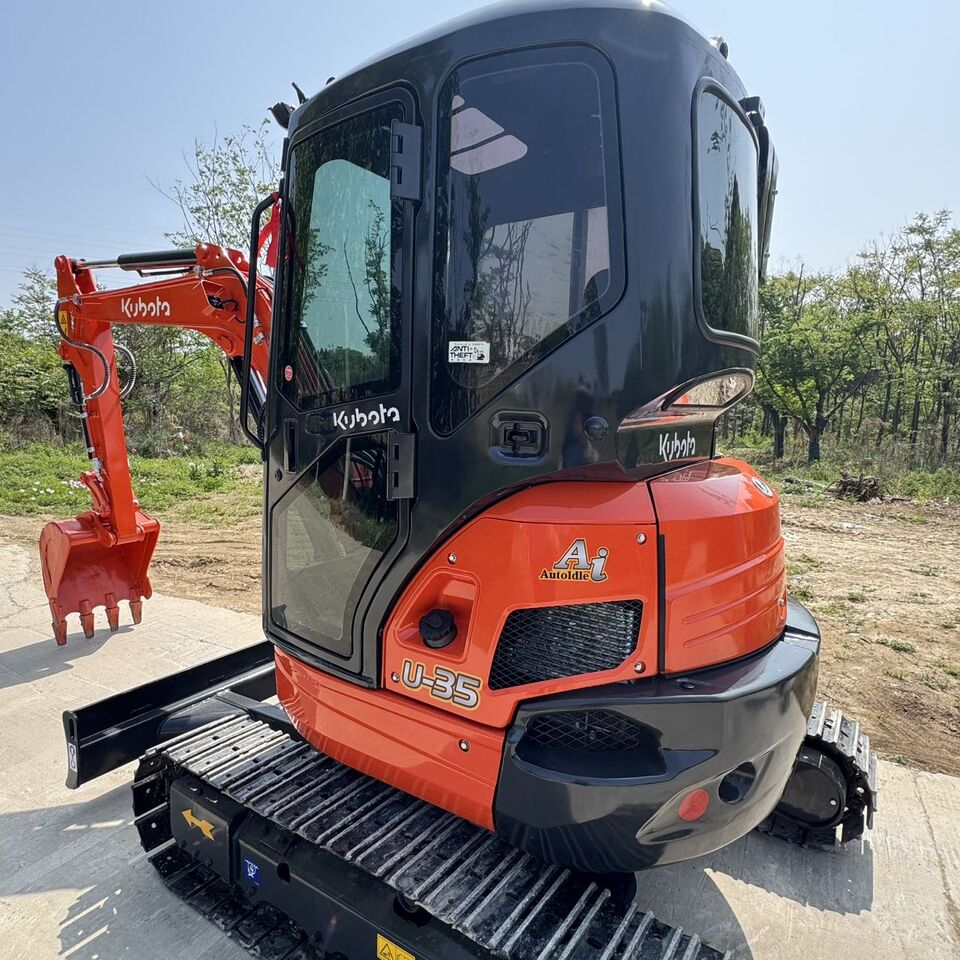

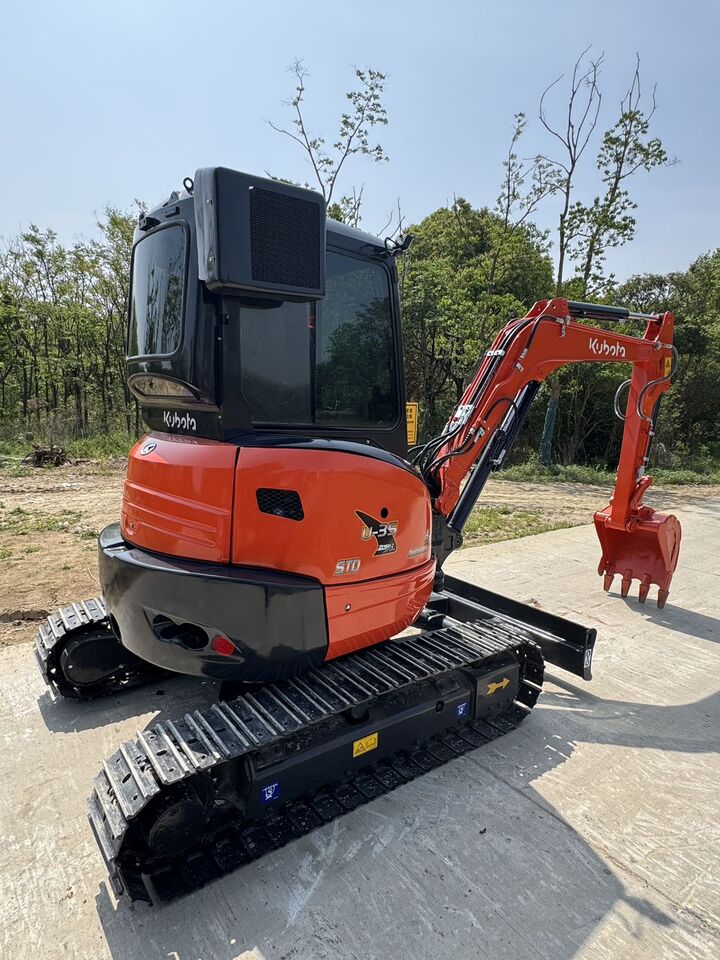

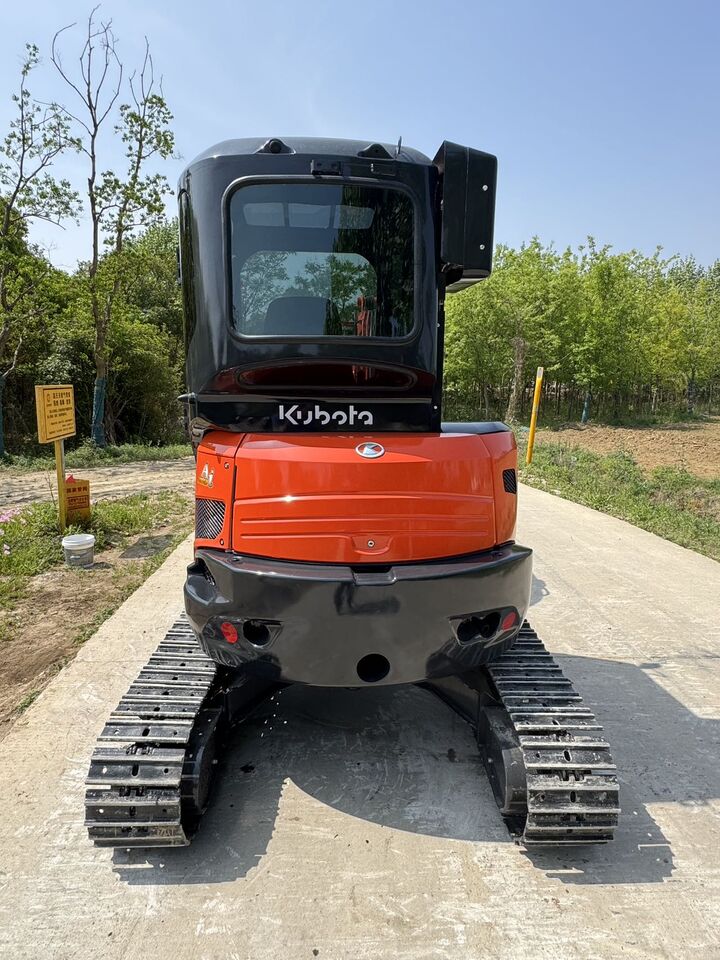

2025 Kubota U-35 Mini Excavator

Kubota U-35 | 3.9 t | 469 hours
Location: Hefei, China

Machine Overview:
The Kubota U-35 is a 3.5-ton zero-tail-swing mini excavator designed for narrow-space work. Powered by a Kubota D1703 direct-injection diesel engine, it features low fuel consumption and stable performance. The independent 3-pump HMS hydraulic system enables smooth simultaneous operation, and the zero rear swing with boom side shift allows work close to walls. Standard auxiliary hydraulics support breakers, augers, grapples, and other attachments. The machine is available with an air-conditioned enclosed cab or open canopy, 2-speed travel, floating dozer blade, and auto-idle function.

Key Features:
- Zero-tail-swing design with boom side shift
- Kubota D1703-E4 diesel engine, 25 hp, 4 cylinders
- Independent 3-pump hydraulic system for smooth operation
- Max digging depth: 2,989 mm
- Transport dimensions: 4,754 mm L x 1,700 mm W x 2,476 mm H
- Track width: 1,420 mm for stability
- Equipped with bucket, blade, and counterweight
- CE, ISO2000, and SGS certified

Technical Data

Engine:
- Model: Kubota D1703-E4
- Power output: 25 hp
- Displacement: 1,647 cc
- Fuel: diesel

Hydraulic System:
- Independent 3-pump HMS system

Work Area:
- Max digging depth: 2,989 mm

Dimensions / Transport:
- Transport length: 4,754 mm
- Transport width: 1,700 mm
- Transport height: 2,476 mm

Undercarriage:
- Track width: 1,420 mm

Attachments & Equipment:
- Bucket, blade, counterweight

Documentation & Compliance:
- CE, ISO2000, SGS
